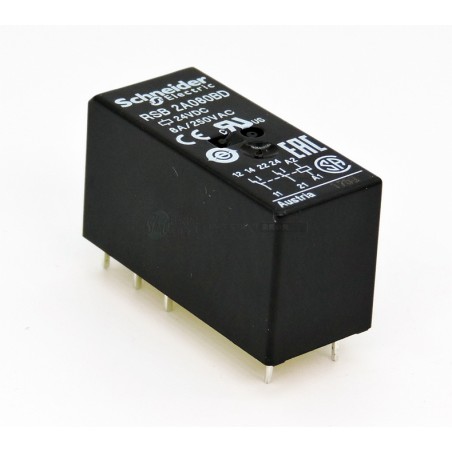

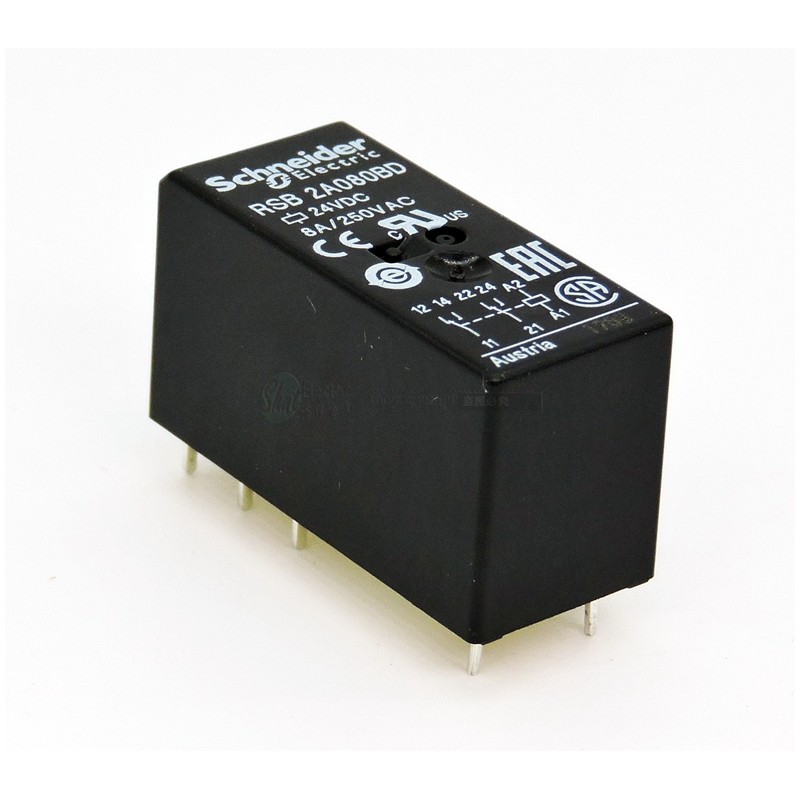

Schneider Zelio RSB2A080BD Slim Interface Relay 2 C/O 8A 24VDC

Schneider Electric Zelio — RSB2A080BD Slim Relay

• Type: Plug-in slim interface relay
• Contact configuration: 2 C/O (DPDT — 2-pole double-throw)
• Rated current per contact: 8 A
• Switching voltage: 250 V AC max
• Coil voltage (BD): 24 V DC
• Width: 15.5 mm (slim profile)
• Features: LED status indicator, lock & test button, mechanical position flag
• Compatible socket: RSZE1S48M (screw) / RSZE1S35M (spring)
• Standard: IEC/EN 61810-1
• Electrical lifetime: 100,000 cycles at rated load

RSB suffix decoding: 2A = 2 C/O standard contacts, 08 = 8 A rating, 0 = standard relay, BD = 24 V DC coil.

Manufacturer: Schneider Electric — se.com
